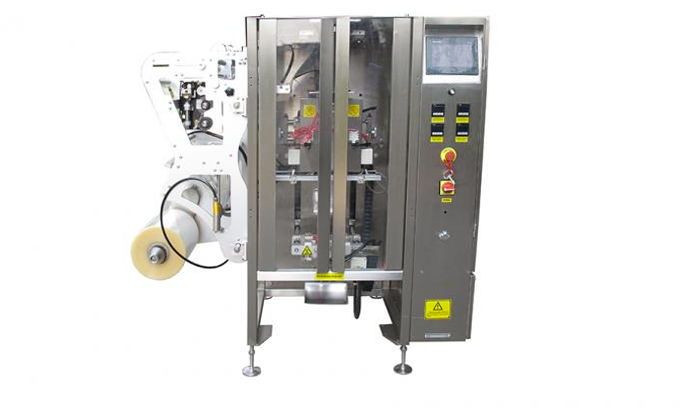

4 Sides Sealing Packaging Machine

4 Sides Sealing Packaging Machine

Product Code : 4S

Three servo motors
The machine has three servo motors. So that makes the machine faster and sensitive compare to its’ competitors.

Plug connectors
All the changeable former heating equipments on the machine, all pistons and other changeable equipments plug-in connected to the main body. And that provides convenience for the user.
...


Whatsapp Contact

Technical Advantage

Three servo motors
The machine has three servo motors. So that makes the machine faster and sensitive compare to its’ competitors.

Plug connectors
All the changeable former heating equipments on the machine, all pistons and other changeable equipments plug-in connected to the main body. And that provides convenience for the user.

Touch screen
 With its adjustable height and direction of the touch screen, provides an ergonomic design compared to competitors.

Schneider Technology
All servo motors driver and touch screen
gained value through Schneider technology.

Automatic film tension system
During the continuous flow of the film used in packaging by an automatic tension system. This high speed sensors provides same quality packages if there is any change of machines speed.

Automatic Mecanism To Prevents Film Slipping
Can move to the right and left because of the films connection to the all construction motors. Automatically slipping the right and left of the machine is prevented.

Transparent structure
The front left & right  of the machine is equipped with fibred glass. This is an advantage for user to control machine and set.

Types of packets
Allowing two different types of packaging with its two bobbins connection.

Economic advantages
Served as an economical solution by its high speed, small structure
and packets amount compare to other machines in the market.

High amount of package
With two different types of formers, bagging capabilities is high with pillow type machine. Despite of its Start- Stop working way, machine can package up to 180 bags per minute.

4S 36 - 4 Sides Sealing Packaging Machine

Item

 Contents Item Contents

Model

 AKY - 4S36
 Packing film material BOPP/CPP, BOPP/VMCPP, BOPP/PE,
PET/VMPET/PE, PET/PE, etc

Max packing speed

50 bags/min

Air consumption
 0,8 Mps 0,3 m³/min

Bag Size

 (L) 80 - 250 (W) 70 - 160 mm Voltage 2,2 KW 220 V 50/60 Hz

Max film width

 320 mm Dimension (L) 1380 x (W) 1220 x (H) 1650 mm

Film Thickness

 0,04--0,08 mm Net weight 550 kg

Özellikler

Specifications

Standart

Standard

Opsiyonel

Optional

Krom Gövde / frame and all parts stainless steel S/S 304

 ✓

Servo Motor / Servo motors

 ✓

CE Güvenlik / CE

✓

Otomatik Ayarlanabilir Kule Film Sistemi

Automatic film control unit

 ✓
Otomatik Film Kayma Önleme / Automatic film stabilization unit ✓
Vakumlu Kayış / Vacuum belt   ✓
Havalı Bobin Sabitleme / Automatic bobbin fixing unit ✓
Oturan Paket Körük Sistemi / Gusseted Device ✓
Anti Statik Bobin / Anti static bobbin   ✓
Tam Otomatik Film Gergi-Çözgü Sistemi / Automatic film strength ✓
Üst Ağırlık Alma Sistemi / Upper supporting device   ✓
Alt Ağırlık Alma Sistemi / Bottom supporting device   ✓
5+1 Paket Sistemi / Connected bag function   ✓
Şeffaf Cam Kapak / All doors transparent ✓
Dokunmatik Ekran / Touch screen ✓
Paket Üzeri Delik Açma / Hole punching device   ✓
Kolay Değişen Yaka-Boru / Easy change former ✓
Paket İçi Azot Uygulama / Nitrogen air inflation ✓
Pano İçi Aydınlatma / light in control panel ✓
Paket Çıkış Bandı / Final conveyor   ✓
Besleme Elevatörü ve vibrasyonlu besleyici / Feeder elevator and vibrator   ✓
Platform / Platform   ✓
Polietilen (PE) Uygulama / PE film system   ✓
Yarı Otomatik Film Ekleme Sistemi / Film waste prevention system ✓
Makine İçi Aydınlatma / light in machine ✓
Tırtıklı Bıçak Kesme / Jagged cutting device   ✓
Termal Yazıcı / Thermal printer   ✓
Tarih Kodlama / Dater coders ✓
Ekstra Yaka Boru / Extra former   ✓
